Type: PCIe Dual Ports LAN Card
Producer: ST-LAB
Description:
PCI Express is the next revolution in I/O interconnect standards that will deliver the bandwidth
and features required by PCs, consumer electronics and communications devices.
The architecture is a cost-effective, low-pin count, and point-to-point technologies offering maximum
bandwidth, reducing cost and design complexity and enabling smaller form factors.
This card is the best solution for Gigabit Ethernet PCI Express and the interface has a potential transfer
rate of 2.5 Gbps using a single-lane (or x1) PCI Express link.

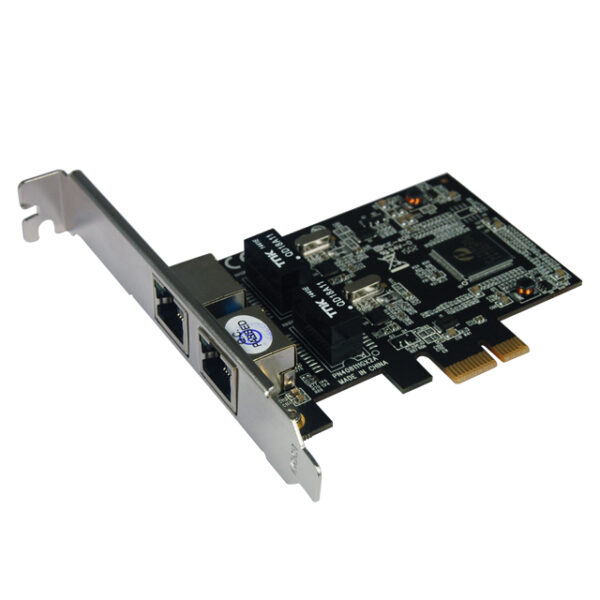

This card is a 2-Port Gigabit Ethernet PCI Express Card, which is specifically designed to plug into a
desktop equipped with an available x1, x4, x8 or x16 PCI Express slot.
It supports high performance dual channel networking and full duplex communication to achieve up to
2000 Mbps and fast transfer rates, yet is compatible with existing Ethernet.
It comes with a comprehensive of software drives for all desktop operating systems, including Microsoft
Windows and Linux.
Features
Designed to meet PCI Express Specification Revision 2.1
Single-lane (or x1) PCI Express throughput supports rate of 2.5Gbps
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports 10/100/1000M data auto-negotiation
Automatic MDI/MDIX crossover at all speeds
Up to 9K jumbo frame support
Supports Wake On Lan (WOL) power management
Features full duplex mode that doubles the network connections speed
System Requirements
Windows 7/8.x/10/11, Windows Server 2008 R2/2012 R2/2016/2019
Linux 2.6.x or later
PC with one free PCIe slot
Package Contents
1 x 2-Port Gigabit Ethernet PCIe Card
1 x User Manual
