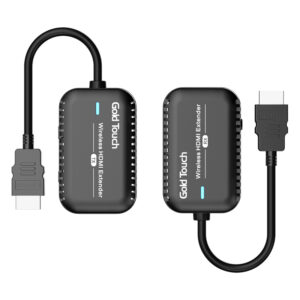

Type: Wireless HDMI Extender Up To 100M (1 to 2) 1080P@60Hz
Color: Black
Overview:

HDMI extender through wireless WIFI signal transmission HD audio and video signal, at the same time,
with infrared extensions to make remote control more convenient.The equipment has excellent image
processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of
economic and efficient way of HDMI signal extension.

Features:
  • HDMI video and audio transmission via wireless WIFI, up to 200 meters
  • HD video signal resolution up to 1920 * 1080 @ 60 Hz
  • HDMI 1.3 compatible
  • Special format H.264 is used to compress and decompress video, effectively improve the transfer efficiency,
    to ensure that the playback fluency
  • In accordance with standard 1.2 HDCP, high-bandwidth digital content protection technology
  • Supports external remote infrared extension, easy to operate the remote device
  • Transmitter support one channel LOOP OUT
  • Able to automatically identify and configure a variety of display mode
  • Built-in automatic balance system, the picture is fluent, clear and stable
  • Simple and convenient installation, plug and play, do not need to set up
Specification:
DescriptionParameter
HDMI 1.3; HDCP 1.2StandardsVideo
H.264Compressed format
165MHzMaximum pixel clock
6.75GbpsMaximum data rate
Max: 1920X1080p@60HzResolution
HDMI-AConnector
100ΩImpedance
Less than 5 meters, when 1920 x1080p @ 60 HzRecommend HDMI maximum input/output range
3.5mm Stereo audio socketInterfaceIR
UnidirectionalSignal direction
DigitalSignal type
20-60kHzIR frequency
24dbmRadio Frequency powerWIFI
802.11a/nWireless standards
Unidirectionalsignal direction
5.15-5.825GHzRadio frequency
Undisturbed environment 200MTransmission distance
Adapter:DC 5VPowerOther
MAX 10WPower dissipation
Operating:-5℃ ~ +70℃Temperature
Operating:5% ~ 90%Humidity
112.6*95*18.2mmSize
1 year free warrantyWarranty
Package includes:
  • HDMI transmitter
  • HDMI receiver
  • Power adapter
  • IR TX/RX Cable
  • User manual
