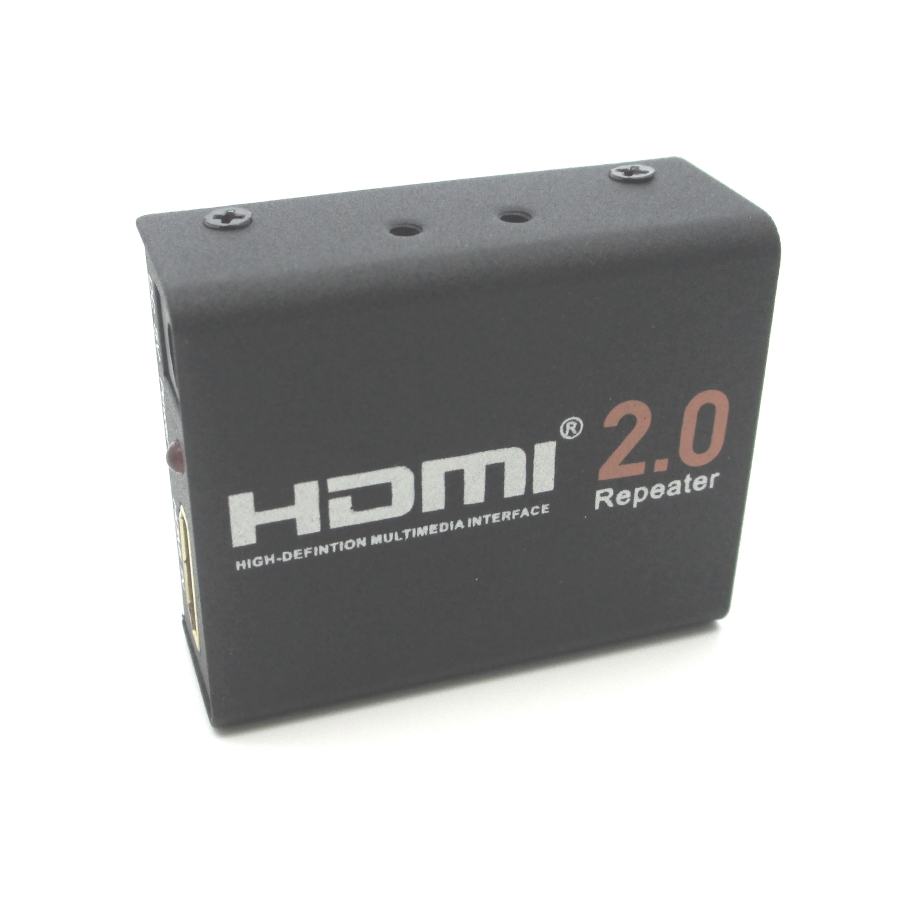

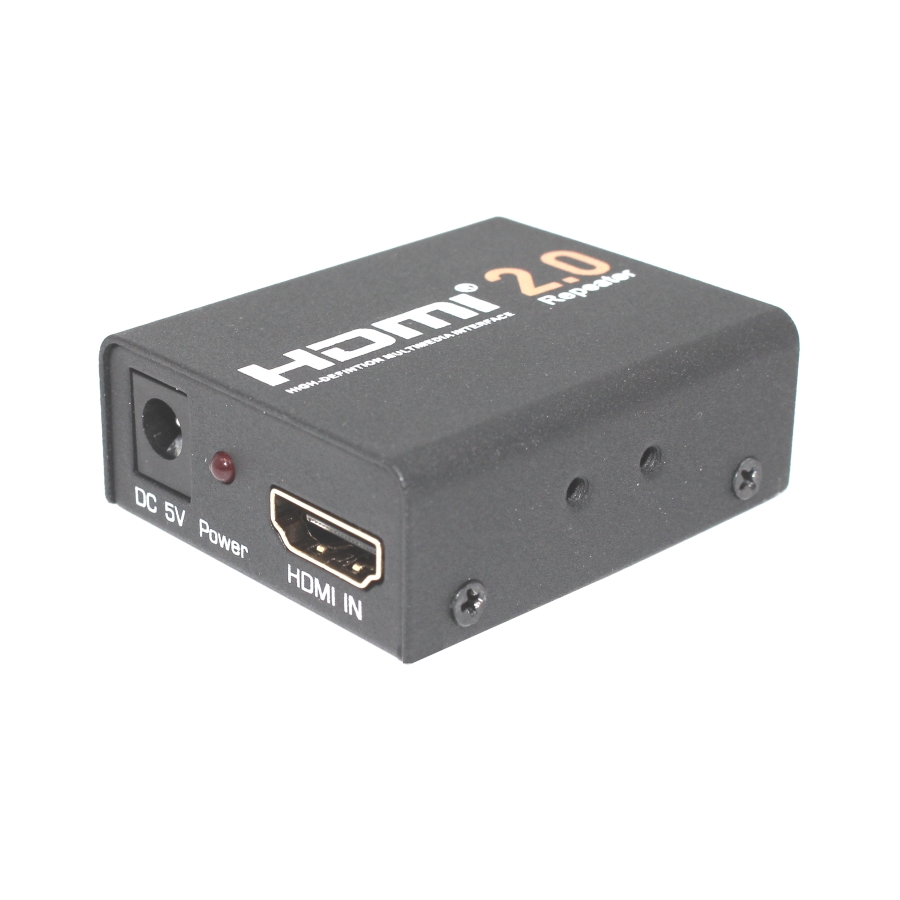

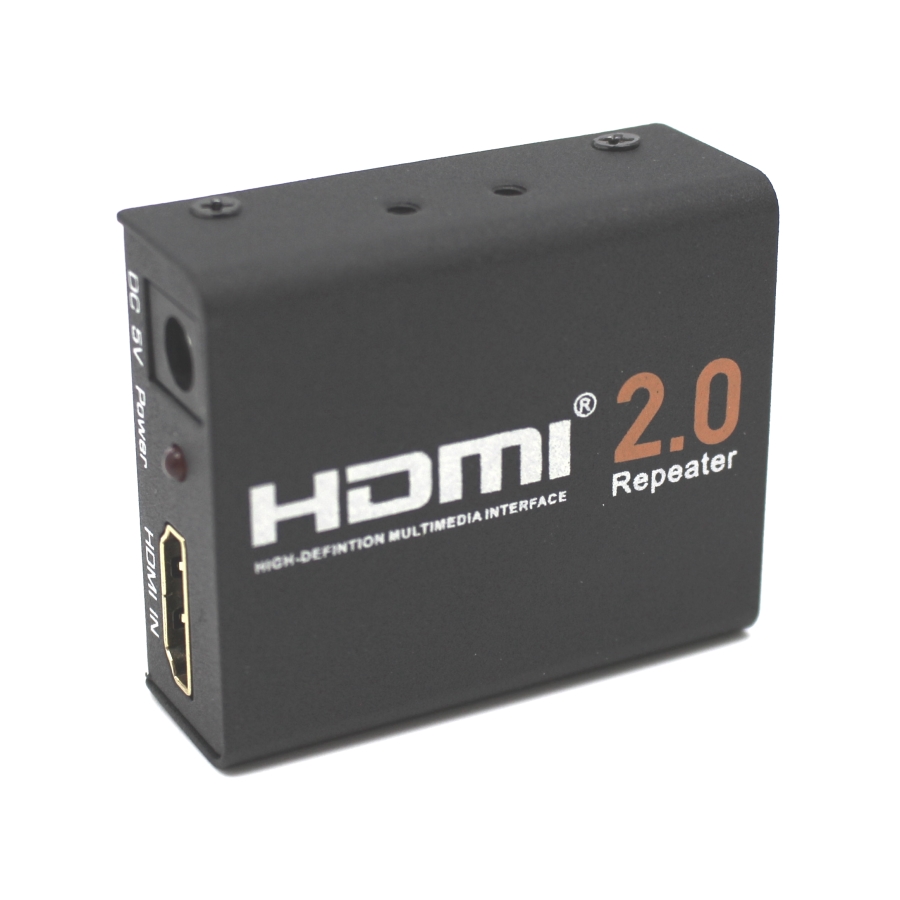

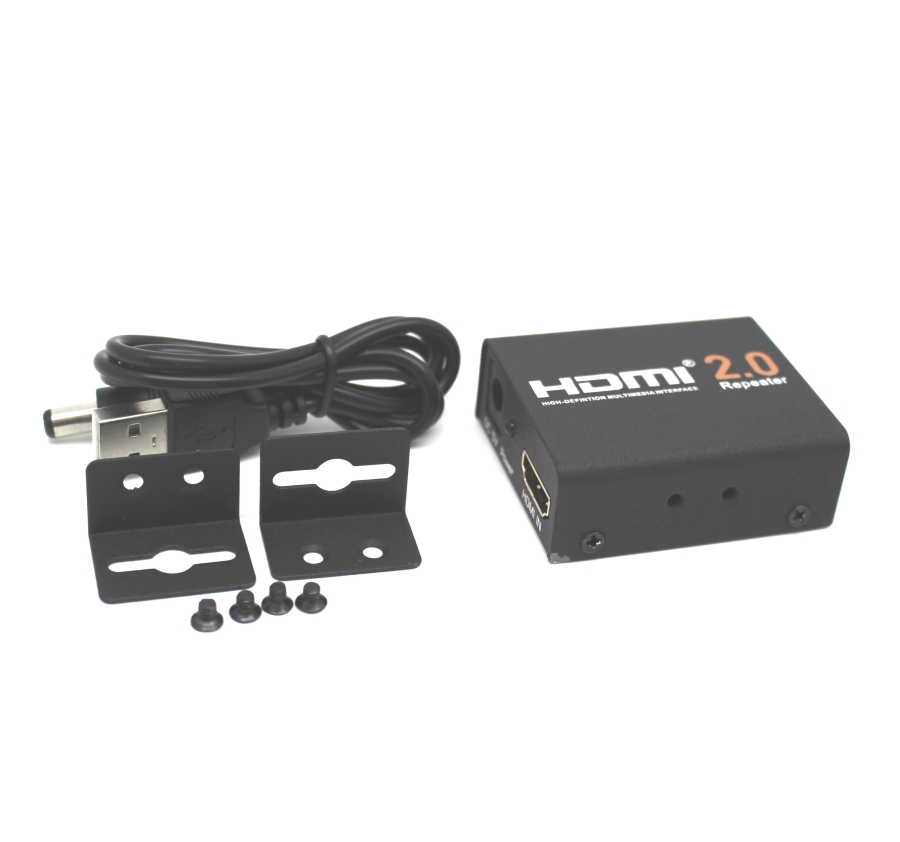

HDMI2.0 Repeater

HDMI2.0 Repeater Up To 2x 30m Support 4K x 2K & 3D

מק"ט: E-HDMI-R קטגוריות: ,
תיאור

תיאור

TYPE: Repeater

COLOR:Black

Features:

Compliant To HDMI2.0 and HDMI1.1 Specification

Serial data rate up to 6.0Gbps

Support High resolution 4K/60Hz format

Support HDCP 2.2

Support 3D transmission

Distances:

Input resolution 4K/60Hz, RGB 4:4:4, both input and output transmission distance are up to 15m using HDMI2.0 AWG24 cable.

Input resolution 4K/30Hz, RGB 4:4:4 or4K/60Hz, RGB 4:2:0, both input and output transmission distance are up to 20m using HDMI2.0 AWG24 cable.

Input resolution 1080P/60Hz,both input and output transmission distance are up to 30m using HDMI2.0 AWG24 cable.

Specifications:

HDMI Input/output Resolution – Up to 4K/60fs

Support HDMI Video Color Format – 24bit/Deep color 30bit/36bit

HDMI Audio Channel Quantity – 32 Channels

HDMI Max. Bandwidth – 300Mhz

HDMI Max. Transfer Rate – 18Gbps

Max. Working Current – 300mA
